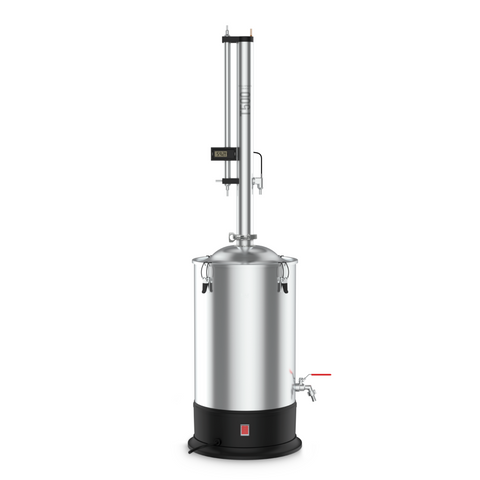

T500 Distilling System

The ultimate distilling system, the T500 Distilling System is a must for anyone who wants to produce large quantities of extremely clean, pure alcohol. The T500 allows you to collect an astonishing 95% of the possible alcohol from the wash. This comes out at an amazing 93% alcohol purity which beats every other still on the market. Also suitable for distilled water and hydrosols.

High-quality alcohol made with the T500 can be used to make high-quality, commercial-grade, clear spirits such as Gin, White Rum and Vodka as well as any of the other spirits and liqueurs in the Still Spirits Flavouring range.

This Still Spirits Boiler 25 L features two power switches. When both switches are on, the element will be supplied full power of 2200W for 220V units, or 1600W for 120V units. You can lower this to 1100W by switching one of the two switches off (220V unit) or by switching off the 500W switch (120V unit).

NOTE: The Still Spirits Boiler 25 L and T500 Column & Condenser are sold separately. The T500 Column & Condenser comes as either stainless steel or copper.

• For intermediate-advanced distilling
• Stainless Steel T500 Reflux Condenser: Made from 304-grade stainless steel
• Copper T500 Reflux Condenser: Made from copper
• Designed in New Zealand
• Faucet adaptor for ease of cooling water connection
• Boil dry reset
• Thermal cut out fuse
• Waste discharge tap
• 25 L Boiler capacity

T500 Column & Condenser:

• Dimensions: H 69 cm x W 8.5 cm x D 16 cm
• Weight: 2.3-2.99 kg
• Warranty: 3 years

T500 Boiler

• Dimenions: H 64 cm x W 36 cm x D 37 cm
• Weight: 5.42 kg
• Power: 2000W (1600W for US/CA Units)
• Warranty: 3 years

• Yield: 8 L (2.1 US Gal) of 40% ABV alcohol per 25 L (6.6 US Gal) wash (based on using the standard recipe of 6 kg (13.2 lb) of sugar
• Purity: Distills at up to 93% ABV (186 US proof) before diluting to 40% ABV (80 US proof)

T500 Column & Condenser (Copper or Stainless Steel):
• Prepacked Condenser Column
• PVC and PE Tubes
• Digital Thermometer
• Distilling Conditioner (Ingredients: water, silicone antifoam)
• Ceramic Boil Enhancers
• Water Flow Controller with kitchen, garden and laundry tap adaptors
• Instructions Booklet

Still Spirits Boiler 25 L:
• Boiler 25L
• Instructions

https://help.stillspirits.com/hc/en-us/sections/11879587940369-T500-REFLUX-STILL
